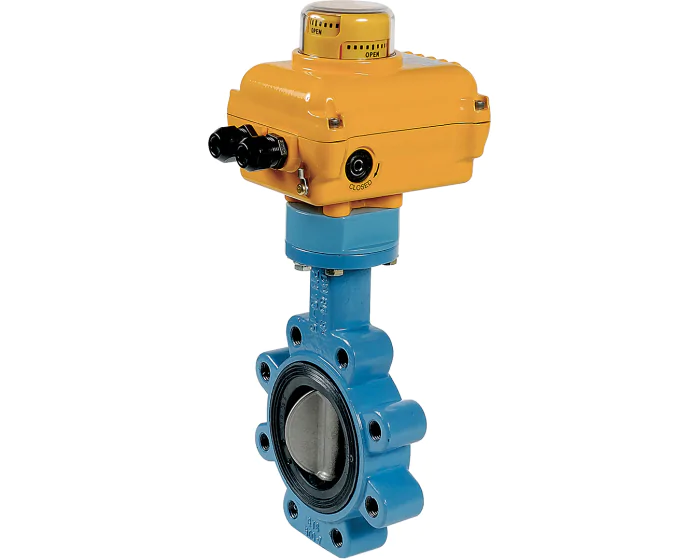

The TTV 1163 LUG butterfly valve has a ductile iron body, a 316 stainless steel disc and an EPDM seat. It is actuated by an SA/NA electric actuator. ACS approval.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 304 |
| Manual override | By key |
| Declutchable | No |
| DN | DN40 - 1''1/2 |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 33.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Power (W) | 6 |
| Connections | Between flanges PN10/16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 110 |
| TS min (°C) | -15 |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 230 V AC | 261393023010 | S1005657 |
€530.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' 230 V AC | 261394023010 | S1005658 |
€532.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 230 V AC | 261395023010 | S1005659 |
€560.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' 230 V AC | 261396023010 | S1005660 |
€578.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' 230 V AC | 261397023010 | S1005661 |
€611.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' 230 V AC | 261398023069 | S1005662 |
€761.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' 230 V AC | 261399023130 | S1005663 |
€1,294.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' 230 V AC | 261400023130 | S1005664 |
€1,534.57
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN250 - 10'' 230 V AC | 261401023150 | S1005665 |
€1,958.40
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN300 - 12'' 230 V AC | 261402023160 | S1005666 |
€2,441.41
(excl. btw)
|
add to cart |
